| Quantity: | |
|---|---|

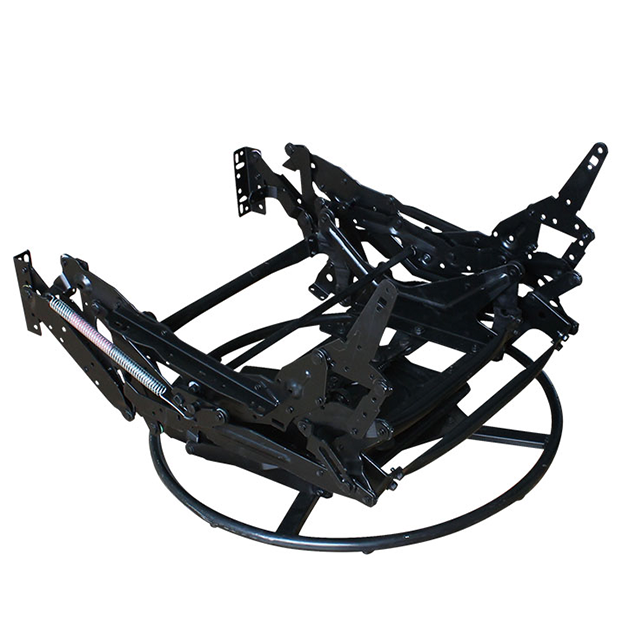

RG-86/Glider With swivel
| Type: | Chair Mechanism |
| Mail packing: | Plywood Cases & Cartons |
| Place of Origin: | China |
| Brand Name: | REGAL |
| Model Number: | RG-86/Glider with swivel |
| Function: | Extension |
| Application: | Multifunctional sofa |
| Certificate: | ISO9001:2008, SGS, TUV |
| Warranty: | 2 Years |
| Payment： | L/C, T/T |
| Surface treatment: | Environmentally friendly waterborne paints and powder coatings |
| Weight: | Manual one:22.0KGS |
| Load Capacity: | 180KGS |
| Color: | Customized, default: black |
| Material: | Hot-rolled Steel Q235B |
| Service content: | 1.product color, requirements：customized MOQ>3000 or 2*40 "GP, 2.product seat width，requirements： customized MOQ >300 After get deposit, we can provide 1set free sample. |
86S glider with swivel component list/package list
ITEM | English Name | PIC | QTY/PCS (one set) | Package way | package size |
1 | Recliner ASSY/Left |
| 1 | 40sets/ctn (40pcs left assy+40pcs right assy) | wood box: 1140*1150*730mm |
2 | Recliner ASSY/Right |
| 1 | ||
3 | Stablizar rail |
| 2 | 40sets/ctn ALL tubes are packaged together with L&R Recliner ASSY | |
4 | Front Torque rail |
| 1 | ||
5 | Back Torque rail |
| 1 | ||
6 | Driving tube |
| 1 | ||
7 | 25*25 Square tube |
| 2 | ||
8 | Switch/Right |
| 1 | 50sets/ctn (Right lever set) | paper box: 350*230*85mm |
9 | ￠0.9 switch spring |
| 1 | ||
10 | KD sleeve+clip |
| 2 | 200pcs/ctn | paper ctn: 360*230*160mm |
11 | M7*13 bolt |
| 17 | 3000-4000pcs/ctn | paper ctn: 360*230*160mm |
12 | M7*23 bolt |
| 2 | 2000-3000pcs/ctn | paper ctn: 360*230*160mm |
13 | Weak spring |
| 1 | 200pcs/ctn | paper ctn: 360*230*160mm |
14 | Strong spring |
| 1 | 200pcs/ctn | paper ctn: 360*230*160mm |
15 | Plastic handle&cable line |
| 1 | 100sets/ctn | paper ctn: 1130*290*160mm |
16 | Swivel Base |
| 1 | 70sets/pallet | wood pallet: 1150*1150*750mm |
17 | 1/4"*38 screw |
| 8 | 1000-2000pcs/ctn | paper ctn: 360*230*160mm |
18 | 1/4" nut |
| 8 | 3000-4000pcs/ctn | paper ctn: 360*230*160mm |
